Workover, Production, Re-Entry and Frac Plug Drill Bits

Drillhead, Inc. manufactures a full line of PDC bits for workover drilling applications. We also offer New surplus and #1 re-run tri-cone bits from all major manufacturers.

Our PDC workover bits are made in America of the highest grade components available. Every aspect of designing, engineering, testing and manufacturing is done in-house; allowing us to closely manage every step of the process and provide a superior product at a lower price.

1. •NEW workover PDC Bits in sizes 3” and larger


   (3, 4 and 5 blade options available to match your application)

1. •NEW & Re-run Tri-Cone Bits in sizes 2 7/8” and larger


   (Mill Tooth, TCI, Open or Sealed Bea)

1. •Reverse Circulation (R/C) Tri-Cone Bits


2. •Reverse Circulation (R/C) PDC Bits


3. •Shipping available from Oklahoma and Oregon

Drillhead Workover PDC Bits

American Made workover PDC bits at unbeatable prices. Our PDC bits outperform and outlast roller cone bits. Excellent for drilling out bridge plugs, cement.

1. •Available in Standard or Spear-Point™ cutting profile


2. •Drills much faster than tri-cone bits


3. •Very smooth drilling


4. •No bearings to wear out


5. •Rebuildable


6. •Sizes from 3” and larger in 1/16” increments


7. •Any pin, box or hex connection


8. •Available with 3, 4 or 5 blades


9. •Custom PDC bit solutions available

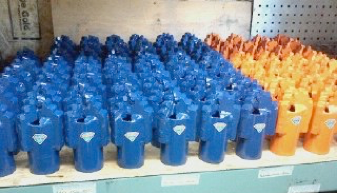

New and Re-Run Workover Tri-Cone Bits

Drillhead, Inc. stocks tri-cone bits of all sizes

and types, from all manufacturers.

• TCI (Tungsten Carbide Insert)

1. •MT (Mill Tooth / Steel Tooth)


2. •Sealed Bearings orOpen Bearings


3. •Soft Formation - Hard Formation


4. •Reverse Circulation Available


5. •Available in all sizes from 2 7/8” - 36”


6. •Tri-cone bits from all major manufacturers


7. •Lower-cost foreign made bits available


8. •NEW or #1 Re-Run bit options available


9. •International shipping available

Roseburg, OR

Seminole, OK

2  LOCATIONS TO SERVE YOU BETTER

INTERNATIONAL

SHIPPING

AVAILABLE

Call For Pricing

Call For Pricing

BIT SIZE     PDC        MILL TOOTH TRI-CONE        TCI TRI-CONE        PIN SIZE

2 7/8”                                                                                                   4 THD N Rod

2 5/16”                                                                                                 4 THD N Rod

3”                                                                                                         4 THD N Rod

3 1/8”                                                                                                   4 THD N Rod

3 1/4”                                                                                                   4 THD N Rod

3 3/8”                                                                                                        2 3/8”

3 1/2”                                                                                                        2 3/8”

3 5/8”                                                                                                        2 3/8”

3 3/4”                                                                                                        2 3/8”

4”                                                                                                              2 3/8”

4 1/8”                                                                                                        2 3/8”

4 1/4”                                                                                                        2 3/8”

4 1/2”                                                                                                        2 3/8”

4 5/8”                                                                                                        2 7/8”

4 3/4”                                                                                                        2 7/8”

4 7/8”                                                                                                        2 7/8”

5”                                                                                                              2 7/8”

5 1/8”                                                                                                        2 7/8”

5 1/4”                                                                                                        2 7/8”

5 3/8”                                                                                                        2 7/8”

5 1/2”                                                                                                        2 7/8”

5 5/8”                                                                                                        3 1/2”

5 3/4”                                                                                                        3 1/2”

5 7/8”                                                                                                        3 1/2”

6”                                                                                                              3 1/2”

6 1/8”                                                                                                        3 1/2”

6 1/4”                                                                                                        3 1/2”

6 1/2”                                                                                                        3 1/2”

6 5/8”                                                                                                        3 1/2”

6 3/4”                                                                                                        3 1/2”

7”                                                                                                              4 1/2”

7 1/8”                                                                                                        4 1/2”

7 1/4”                                                                                                        4 1/2”

7 3/8”                                                                                                        4 1/2”

7 1/2”                                                                                                        4 1/2”

7 5/8”                                                                                                        4 1/2”

7 7/8”                                                                                                        4 1/2”

8”                                                                                                              4 1/2”

8 1/8”                                                                                                        4 1/2”

8 1/4”                                                                                                        4 1/2”

8 3/8”                                                                                                        4 1/2”

8 1/2”                                                                                                        4 1/2”

8 5/8”                                                                                                        4 1/2”

Workover Bits Sizes

Custom Sizes and Connections Available - Call for Pricing

Call For Pricing
