ShovelheadTM Directional 2 Cone HDD Drill Bits
CUT PART# PRICE CONNECTION RIG CLASS PERFECT FOR:
D24x40A, D24x40 Series 2, D33x44, D36x50, D36x50 Series 2, JT25, JT2720, JT2720 Mach 1, AT2720, JT3020 Mach 1, AT3020, JT4020, JT4020 Mach 1
D50x100A, D60x90, D80x100 Series 2, D100x120, D100x120 Series 2, D100x140, JT7020 Mach 1, JT8020 Mach 1, JT100
D50x100A, D60x90, D80x100 Series 2, D100x120, D100x120 Series 2, D100x140, JT7020 Mach 1, JT8020 Mach 1, JT100
D100x120, D100x120 Series 2, D100x140, JT100, AT100
D100x120, D100x120 Series 2, D100x140, JT100, AT100
D330x500, D500x500
The next step in directional drilling technology. With it’s huge steer face, the Shovelhead™ is extremely steerable in all drilling conditions. In tough
conditions that other bits won’t steer through, you need a Shovelhead™.
-
• Exceptional performance and steer-ability in everything from soft ground to hard rock
-
• Very smooth running
-
• Steers by oscillating or “carving”
TCI ShovelHeadTM for use in loose rock, dense cobble
and hard rock.
Mill Tooth ShovelHeadTM for use in clay, sand, dirt,
gravel, cobble and loose rock.
Available in 4 1/2” - 17 1/2”
Any thread connection.
TCI or Mill Tooth, for any formation. (Soft to Hard)
Large Diameter TCI & Mill-Tooth Shovelhead™ Bits Available

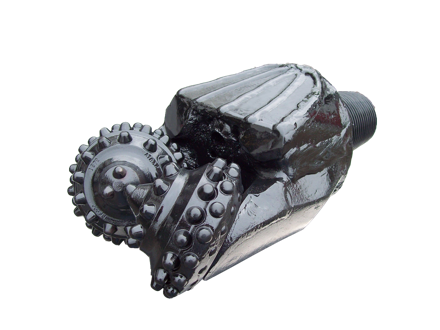

ShovelHead™ TCI
ShovelHead™ Mill Tooth
ShovelHead™ TCI
ShovelHead™ TCI

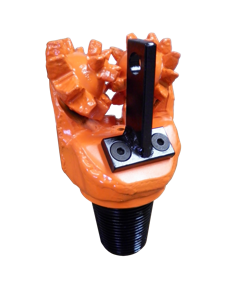

ShovelHead™ Mill Tooth
w/ Optional Pullback Adapter
*Please specify when ordering
©2013 Drillhead, Inc. HDD Tools and Horizontal Directional Drill Bits. All rights reserved. No re-use or distribution of any content.
Ditch Witch® is a registered trademark of The Charles Machine Works Inc.
Vermeer® is a registered trademark of Vermeer Manufacturing Company Inc.
American Augers® is a registered trademark of American Augers Inc.
ShovelHead™ Mill Tooth
ShovelHead™ TCI
Sizes up to 17 1/2” available, call for pricing.
ShovelHead™ TCI
Sizes up to 17 1/2” available, call for pricing.
ShovelHead™ Mill Tooth
5” SH500 $2,850 2” IF Pin 12-22K
5” SH501 $2,850 2 3/8” Reg. Pin 12-44K
5” SH502 $2,850 2 7/8” Reg. Pin 12-100K
5 1/2” SH552 $3,150 2 7/8” Reg. Pin 12-100K
6” SH602 $3,150 2 7/8” Reg. Pin 24-100K
6” SH603 $3,150 3 1/2” Reg. Pin 24-250K
6 1/2” SH652 $3,450 2 7/8” Reg. Pin 24-100K
6 1/2” SH753 $3,450 3 1/2” Reg. Pin 24-250K
7 7/8” SH776 $4,850 3 1/2” Reg. Pin 100-250K
7 7/8” SH777 $4,850 4 1/2” Reg. Pin 100-600K
5” SH500T $2,350 2” IF Pin 12-22K
5” SH501T $2,350 2 3/8” Reg. Pin 12-44K
5” SH502T $2,350 2 7/8” Reg. Pin 12-100K
5 1/2” SH552T $2,750 2 7/8” Reg. Pin 12-100K
6” SH602T $2,850 2 7/8” Reg. Pin 24-100K
6” SH603T $2,850 3 1/2” Reg. Pin 24-250K
6 1/2” SH652T $2,950 2 7/8” Reg. Pin 24-100K
6 1/2” SH753T $2,950 3 1/2” Reg. Pin 24-250K
7 7/8” SH775T $3,650 3 1/2” Reg. Pin 100-250K
7 7/8” SH776T $3,650 4 1/2” Reg. Pin 100-600K
The ShovelHead is an extremely steerable HDD tool built to steer through conditions that other bits won’t.
Sealed bearings, large steer face and a carbide enhanced wear pad.
CUT PART# PRICE CONNECTION RIG CLASS PERFECT FOR:
D24x40A, D24x40 Series 2, D33x44, D36x50, D36x50 Series 2, JT25, JT2720, JT2720 Mach 1, AT2720, JT3020 Mach 1, AT3020, JT4020, JT4020 Mach 1
D50x100A, D60x90, D80x100 Series 2, D100x120, D100x120 Series 2, D100x140, JT7020 Mach 1, JT8020 Mach 1, JT100
D50x100A, D60x90, D80x100 Series 2, D100x120, D100x120 Series 2, D100x140, JT7020 Mach 1, JT8020 Mach 1, JT100
D100x120, D100x120 Series 2, D100x140, JT100, AT100
D100x120, D100x120 Series 2, D100x140, JT100, AT100
D330x500, D500x500
