Vermeer® Brand Transmitter Housings
USE THE CHART BELOW TO FIND YOUR VERMEER® RECOMMENDED TRANSMITTER HOUSING.
THIS WILL GIVE YOU YOUR REQUIRED PIN OR BOLT CONNECTION FOR ALL DRILLHEAD TOOLS.
©2013 Drillhead, Inc. HDD Tools and Horizontal Directional Drill Bits. All rights reserved. No re-use or distribution of any content.
Ditch Witch® and Subsite® are registered trademarks of The Charles Machine Works Inc.
Vermeer® and all rig model numbers are registered trademarks of Vermeer Manufacturing Company Inc.
American Augers® is a registered trademark of American Augers Inc.
NOTE: Use of a crossover sub and other factors may change your required connection. Please verify your required tool joint by using 3 simple measurements (see images below) or feel free to call us any time for connection identification. 580-222-4851
VERMEER® BRAND HOUSING IDENTIFICATION
D16x20 - D40x40
D24x40 - D36x50 Series 2
D50x100A - D80x100 Series 2
D100x120 Series 2
D150x300 - D330x500
D6x6 - D10x15
D16x20 - D24x40
3” Universal Housing (Part # 296351780)
3 1/2” Universal Housing (Part # 296351765)
3 3/4” Universal Housing (Part # 296351766)
4 1/2” Universal Housing (Part # 296351767)
6 1/2” Universal Housing (Part # 296341502)
Replaceable Read Sub Side Load Housing (Part # 262394001)
Replaceable Read Sub Side Load Housing (Part # 296351789)
Replaceable Read Sub Side Load Housing (Part # 296255579)
8-UNC Box
2 3/8” (2.375” API Reg. Box
2 7/8” (2.875”) API Reg. Box
3 1/2” (3.5”) API Reg. Box
4 1/2” (4.5”) API IF Box
8-UNC PIN
4 1/2” API IF Pin
THREAD CONNECTIONS
BOLT-ON CONNECTIONS
D24x40 - D36x50 Series 2
D50x100A - D80x100 Series 2
D100x120 Series 2
Replaceable Read Sub Side Load Housing (Part # 296352061)
Replaceable Read Sub Side Load Housing (Part # 296351786)
VM - 6-Bolt - (3/4” Bolt)
D6x6 - D10x15
D16x20 - D40x40
Standard Side Load Housing (Part # 234786001)
Standard Side Load Housing (Part # 226638001)
D6x6 - D10x15
D16x20A - D24x40 Series 2
Premium Side Load Housing (Part # 296408265)
Premium Side Load Housing (Part # 296408264)
Premium Side Load Housing (Part # 296406540)
D16x20A - D36x50 Series 2
D60x90, D80x100, D80x100 Series 2
D100x120, D100x120 Series 2, D100x140
Premium Side Load Housing (Part # 296408266)
Premium Side Load Housing (Part # 296408267)
VM - 6-Bolt - (3/4” Bolt)
D6x6 - D10x15
Replaceable Read Sub Side Load Housing - Subsite® (Part # 296351784)
D16x20 - D40x40
Replaceable Read Sub Side Load Housing - Subsite® (Part # 296351785)
D24x40 - D36x50 Series 2
Replaceable Read Sub Side Load Housing - Subsite® (Part # 296351791)
~
FIND YOUR RIG
STEP 1.
Virtually All Thread-On Style Transmitter Housings Require 1 of these 5 Pins.
3 Measurements Of Your Housing Can Determine Which Pin You Need.

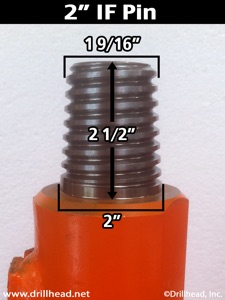

2” IF Pin
Small Dia. of Pin = 1 9/16”
Large Dia. of Pin = 2”
Length of Pin = 2 1/2”
Threads per inch = 4

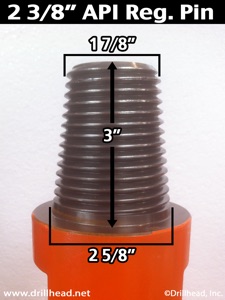

2 3/8” API Reg. Pin
Small Dia. of Pin = 1 7/8”
Large Dia. of Pin = 2 5/8”
Length of Pin = 3”
Threads per inch = 5

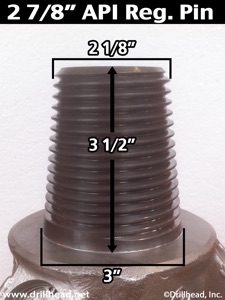

2 7/8” API Reg. Pin
Small Dia. of Pin = 2 1/8”
Large Dia. of Pin = 3”
Length of Pin = 3 1/2”
Threads per inch = 5

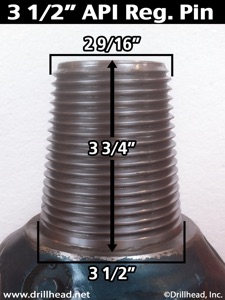

3 1/2” API Reg. Pin
Small Dia. of Pin = 2 9/16”
Large Dia. of Pin = 3 1/2”
Length of Pin = 3 3/4”
Threads per inch = 5

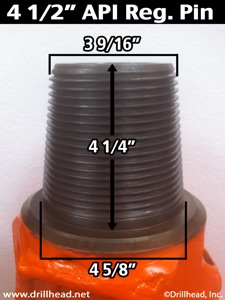

4 1/2” API Reg. Pin
Small Dia. of Pin = 3 9/16”
Large Dia. of Pin = 4 5/8”
Length of Pin = 4 1/4”
Threads per inch = 5
For Assistance Determining Your Pin Size or Bolt Pattern
PLEASE CONTACT US
