Radius® HDD Brand Transmitter Housings
©2013 Drillhead, Inc. HDD Tools and Horizontal Directional Drill Bits. All rights reserved. No re-use or distribution of any content.
Ditch Witch® is a registered trademark of The Charles Machine Works Inc.
Vermeer® is a registered trademark of Vermeer Manufacturing Company Inc.
American Augers® is a registered trademark of American Augers Inc.
Radius® is a registered trademark of Radius, Inc.
D7x11, D7x11 Series 2, D9x13 Series 2,
D10x14, D10x15
2.75” dia. - 2750 Series Rock Housing (Part# 951-2750)
2” IF Box
THREAD CONNECTIONS
BOLT-ON CONNECTIONS
D6x6
2” dia. Dirt Housing (Part # 952-0001)
VM - 5-Bolt - (3/8” Bolt)
Virtually All Thread-On Style Transmitter Housings Require 1 of these 5 Pins.
3 Measurements Of Your Housing Can Determine Which Pin You Need.

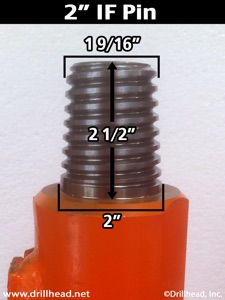

2” IF Pin
Small Dia. of Pin = 1 9/16”
Large Dia. of Pin = 2”
Length of Pin = 2 1/2”
Threads per inch = 4

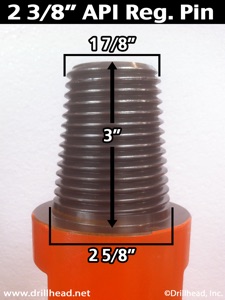

2 3/8” API Reg. Pin
Small Dia. of Pin = 1 7/8”
Large Dia. of Pin = 2 5/8”
Length of Pin = 3”
Threads per inch = 5

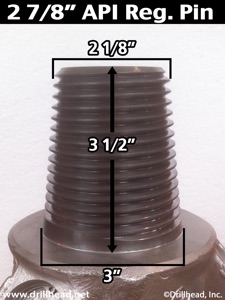

2 7/8” API Reg. Pin
Small Dia. of Pin = 2 1/8”
Large Dia. of Pin = 3”
Length of Pin = 3 1/2”
Threads per inch = 5

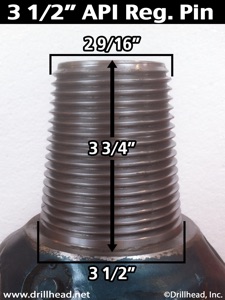

3 1/2” API Reg. Pin
Small Dia. of Pin = 2 9/16”
Large Dia. of Pin = 3 1/2”
Length of Pin = 3 3/4”
Threads per inch = 5

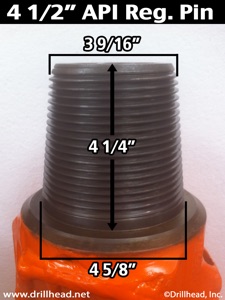

4 1/2” API Reg. Pin
Small Dia. of Pin = 3 9/16”
Large Dia. of Pin = 4 5/8”
Length of Pin = 4 1/4”
Threads per inch = 5
JT520, JT5
DW - 3-Bolt - (12mm)
JT920, JT920L, JT921, JT922
2 3/4” dia. - 2750 Series Rock Housing (Part# 951-2750)
2” IF Box
D7x11, D7x11 Series 2, D9x13 Series 2,
D10x14, D10x15
2.75” dia. - 2750 Series Rock Housing (Part# 951-2751)
2” IF Box
D16x20, D16x20 Series 2, D18x22,
D20x22, D20x22 Series 2, D20x22FX
3.25” dia. - 3000 Series Rock Housing (Part# 951-3000)
2” IF Box
D24x40A, D24x40 Series 2, D33x44,
D36x50, D36x50 Series 2
3.5” dia. - 3500 Series Rock Housing (Part# 951-3500)
2 3/8” (2.375”) API Reg Box
D24x40A, D24x40 Series 2, D33x44,
D36x50, D36x50 Series 2
3.5” dia. - 3500 Series High Flow Rock Housing (Part# 951-3510)
2 3/8” (2.375”) API Reg Box
D50x100A, D60x90, D80x100 Series 2,
D100x120, D100x120 Series 2, D100x140
4.25” dia. - 4500 Series High Flow Rock Housing (Part# 951-4500)
2 7/8” (2.875”) API Reg Box
D50x100A, D60x90, D80x100 Series 2,
D100x120, D100x120 Series 2, D100x140
4.25” dia. - 4500 Series High Flow Rock Housing (Part# 951-4510)
2 7/8” (2.875”) API Reg Box
D100x120, D100x120 Series 2,
D100x140
5” dia. - 5000 Series High Flow Rock Housing (Part# 951-5000)
3 1/2” (3.5”) API Reg Box
D330x500, D500x500
6.5” dia. - 6500 Series High Flow Rock Housing (Part# 951-6500)
4 1/2” (4.5”) API Reg Box
2.75” dia. - 2750 Series Rock Housing (Part# 951-2751)
2” IF Box
3.25” dia. - 3000 Series Rock Housing (Part# 951-3000)
2” IF Box
3.5” dia. - 3500 Series Rock Housing (Part# 951-3500)
2 3/8” (2.375”) API Reg Box
3.5” dia. - 3500 Series High Flow Rock Housing (Part# 951-3510)
2 3/8” (2.375”) API Reg Box
4.25” dia. - 4500 Series High Flow Rock Housing (Part# 951-4500)
2 7/8” (2.875”) API Reg Box
4.25” dia. - 4500 Series High Flow Rock Housing (Part# 951-4510)
2 7/8” (2.875”) API Reg Box
5” dia. - 5000 Series High Flow Rock Housing (Part# 951-5000)
3 1/2” (3.5”) API Reg Box
JT920, JT920L, JT921, JT922, JT1220
JT1220 Mach 1, JT1720, JT1720 Mach 1,
JT2020 Mach 1
JT25, JT2720, JT2720 Mach 1, AT2720,
JT3020 Mach 1, AT3020, JT4020,
JT4020 Mach 1
JT25, JT2720, JT2720 Mach 1, AT2720,
JT3020 Mach 1, AT3020, JT4020,
JT4020 Mach 1
JT7020 Mach 1, JT8020 Mach 1,
JT100
JT7020 Mach 1, JT8020 Mach 1,
JT100, AT100
JT100, AT100
D7x11, D7x11 Series 2, D9x13 Series 2, D10x14, D10x15
2.5” dia. Dirt Housing (Part # 952-0002)
D16x20, D16x20 Series 2, D18x22, D20x22,
D20x22 Series 2, D20x22 FX
2.75” dia. Dirt Housing (Part # 952-0003)
D16x20, D16x20 Series 2, D18x22, D20x22,
D20x22 Series 2, D20x22 FX
3” dia. Dirt Housing (Part # 952-0004)
D24x40A, D24x40 Series 2, D33x44, D36x50,
D36x50 Series 2
3.25” dia. Dirt Housing (Part # 952-0005)
D50x100A, D60x90, D80x100 Series 2, D100x120,
D100x120 Series 2, D100x140
4.25” dia. Dirt Housing (Part # 952-0006)
D24x40, D24x40 Series 2
3” dia. Dirt Housing (Part # 952-0124)
----------------------
D24x40, D24x40 Series 2
3.25” dia. Dirt Housing (Part # 952-0125)
----------------------
2” dia. Dirt Housing (Part # 952-0007)
JT920, JT920L, JT921, JT922
2.5” dia. Dirt Housing (Part # 952-0008)
JT920, JT920L, JT921, JT922, JT1220 Mach 1, JT1720,
JT1720 Mach 1, JT2020 Mach 1
2.75” dia. Dirt Housing (Part # 952-0009)
JT1220 Mach 1, JT1720, JT1720 Mach 1, JT2020 Mach 1
3” dia. Dirt Housing (Part # 952-0010)
JT25, JT2720, JT2720 Mach 1, AT2720 Mach 1,
JT3020 Mach 1, AT3020 Mach 1, JT4020,
JT4020 Mach 1, AT4020
3.38” dia. Dirt Housing (Part # 952-0011)
JT7020 Mach 1, JT8020 Mach 1, JT100, AT100
4.25” dia. Dirt Housing (Part # 952-0012)
For Assistance Determining Your Pin Size or Bolt Pattern
PLEASE CONTACT US
541-430-1926
OREGON OFFICE
580-222-4851
OKLAHOMA OFFICE
FIND YOUR RIG
STEP 1.
FIND YOUR HOUSING
FIND YOUR CONNECTION
STEP 2.
STEP 3.
STEP 4.
USE THE CHART BELOW TO FIND YOUR RADIUS® RECOMMENDED TRANSMITTER HOUSING’S REQUIRED PIN OR BOLT CONNECTION FOR ALL DRILLHEAD TOOLS.
NOTE: Use of a crossover sub and other factors may change your required connection. Please verify your required tool joint by using 3 simple measurements (see images below) or feel free to call us any time for connection identification. 580-222-4851
RADIUS® BRAND HOUSING IDENTIFICATION
