D24x40, D33x44, D36x50
3 1/2” dia. - Sideload Housing (Part# THSL-388-19x1.5-G)
2 3/8” (2.375”) API Reg Box
THREAD CONNECTIONS
BOLT-ON CONNECTIONS
Virtually All Thread-On Style Transmitter Housings Require 1 of these 5 Pins.
3 Measurements Of Your Housing Can Determine Which Pin You Need.

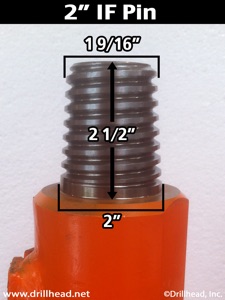

2” IF Pin
Small Dia. of Pin = 1 9/16”
Large Dia. of Pin = 2”
Length of Pin = 2 1/2”
Threads per inch = 4

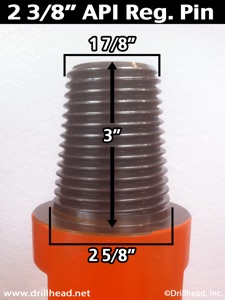

2 3/8” API Reg. Pin
Small Dia. of Pin = 1 7/8”
Large Dia. of Pin = 2 5/8”
Length of Pin = 3”
Threads per inch = 5

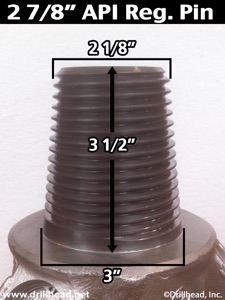

2 7/8” API Reg. Pin
Small Dia. of Pin = 2 1/8”
Large Dia. of Pin = 3”
Length of Pin = 3 1/2”
Threads per inch = 5

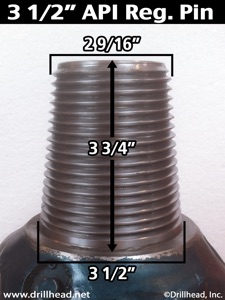

3 1/2” API Reg. Pin
Small Dia. of Pin = 2 9/16”
Large Dia. of Pin = 3 1/2”
Length of Pin = 3 3/4”
Threads per inch = 5

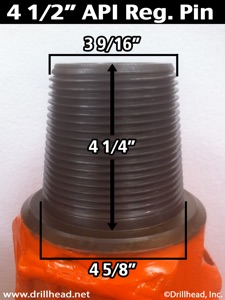

4 1/2” API Reg. Pin
Small Dia. of Pin = 3 9/16”
Large Dia. of Pin = 4 5/8”
Length of Pin = 4 1/4”
Threads per inch = 5
JT2020, JT25, JT2720 Mach 1,
JT30, JT3020 Mach 1, JT3020,
JT4020, JT4020 Mach 1
3 1/2” dia. - Sideload Housing (Part# THSL-388-19x1.5-G)
For Assistance Determining Your Pin Size or Bolt Pattern
PLEASE CONTACT US
541-430-1926
OREGON OFFICE
580-222-4851
OKLAHOMA OFFICE
FIND YOUR RIG
STEP 1.
FIND YOUR HOUSING
FIND YOUR CONNECTION
STEP 2.
STEP 3.
STEP 4.
Armadrillco’s bolt-on connection is a proprietary design. Bits & blades are only available through Armadrillco®.
2 3/8” (2.375”) API Reg Box
D50x100, D60x90, D80x100
5” dia. - Sideload Housing (Part# THS-500-19x1.5-G)
2 7/8” (2.875”) API Reg Box
D24x40, D33x44, D36x50
3 1/4” dia. - Drillhead Sideload Housing (Part# DHSL-388-15x1.3-CP-A)
Armadrillco® Specific Pattern
JT2020, JT25, JT2720 Mach 1, JT30,
JT3020 Mach 1
3 1/4” dia. - Drillhead Sideload Housing (Part# DHSL-388-15x1.3-CP-A)
Armadrillco® Specific Pattern
USE THE CHART BELOW TO FIND YOUR ARMADRILLCO® RECOMMENDED TRANSMITTER HOUSING’S REQUIRED PIN OR BOLT CONNECTION FOR ALL DRILLHEAD TOOLS.
NOTE: Use of a crossover sub and other factors may change your required connection. Please verify your required tool joint by using 3 simple measurements (see images below) or feel free to call us any time for connection identification. 580-222-4851
ARMADRILLCO® BRAND HOUSING IDENTIFICATION
